BD7061 Silicon carbide pump special pouring/casting epoxy coating material

Product description:
BD7061 silicon carbide pump special pouring/casting material is the high performance wear abrasion resistant,corrosion resistant
material which compounded by the high performance NDI-PTMG modified epoxy resin and wear/abrasion resistant silicon carbide
material under the vacuum environment from the core technology of Xiangyang City Hundred Shield Coating Material Co.,Ltd.It is
used for the pooring/casting of silicon carbide whole pump and moulding by casting of other flowing through parts.

Product features:
1.With excellent performance of abrasion/wear resistant and corrosion resistant.
2.The service life of pumping element is prolonged observably.
3.With good toughness,overcome the weakness of sintering silicon carbide pump high brittleness

Performance index:

Product model	Density (g/cm³)	Compressive strength (Mpa) GB1041-2008	Tensile strength (Mpa) GB6329-1999	Shear strength (Mpa) GB7124-2009	Bending strength (Mpa) GB1042-2008	Relative wear resistance Β(steel:1) GB3960-83	Working temperature （℃）
BD7061	2.5	109	43	15	83	4.7	-45-150

How to use:
Accord with the whole silicon carbide pump common pouring/casting technological process.

Transportation storage
Sealed storage in the cool and dry place. The warranty period is 12 months.Avoid placing it upside down, knocking against and transporting
it as a non-dangerous product during transportation.

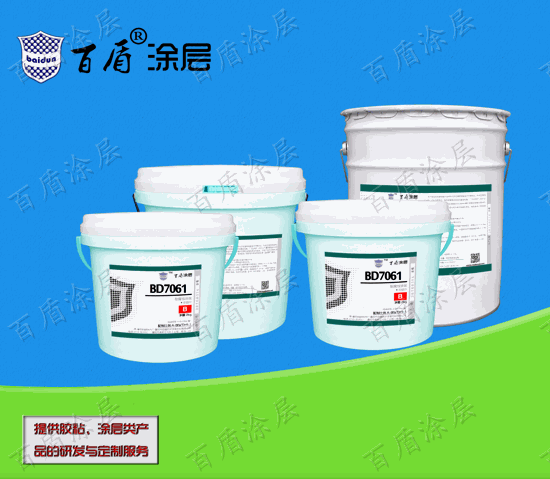

Product packaging photo of BD7061 silicon carbide pump special casting pouring epoxy compound coating materials:
