BD707 anti chemical impact corrosion wearing abrasion high temperature resistant epoxy compound
small particle ceramic beads filling coatings used in dressing plant centrifuge scraper drum,feed inlet
and layout silo rubber lining pipeline repairing and protecting
A WLH1000 centrifuge in one of Ordos dressing plant,due to long-term running,drum scraper was worn badly,and feed inlet and ceramic lining plate
of layout silo inner layer appeared different degree of abrasion, partial area even fall off.
small particle ceramic beads filling coatings used in dressing plant centrifuge scraper drum,feed inlet
and layout silo rubber lining pipeline repairing and protecting
A WLH1000 centrifuge in one of Ordos dressing plant,due to long-term running,drum scraper was worn badly,and feed inlet and ceramic lining plate
of layout silo inner layer appeared different degree of abrasion, partial area even fall off.
In order to maintaining the equipment to work normally by factories, choose Xiangyang City Hundred Shield Coating Material Co.,Ltd procreative
BD707 small particle ceramic bead filling repair epoxy compound anti abrasion wear resistant coating to do abrasion resistant repairing,the equipment
after repairing can work as the new equipment.
BD707 small particle ceramic bead filling repair epoxy compound anti abrasion wear resistant coating to do abrasion resistant repairing,the equipment
after repairing can work as the new equipment.
Repairing technology:
Clean up the impurities of wear parts,clean up the abrasion missing parts of the scraper drum,weld up the stainless steel mesh,clean up the residual
debris and residue of the feed inlet and layout silo ceramic lining plate falling off parts.Polish the pending-repair part to come out the fresh metal
substrates,clean it by the cleaning agent and dry it by airing
debris and residue of the feed inlet and layout silo ceramic lining plate falling off parts.Polish the pending-repair part to come out the fresh metal
substrates,clean it by the cleaning agent and dry it by airing
Make the A and B components of BD707 small particles anti wearing abrasion resistant ceramic bead filling repair epoxy coating mix uniformly
according to the specified ratio,make it be coating on the abrasion parts,and repair it to be the original size,the adhesive layers must be compacted
layer by layer,avoid appearing cavity.It can be put into using after curing for 24 hours at room temperature,or curing for 1 hour at room
temperature,then heat it up to the temperature of 80 degree slowly and keep this temperature for 2 hours,then start it up fast.when the temperature
is low,need to heat it up to the temperature of 80 degree and keep this temperature for 2 hours after the material initial curing.
Range of application for BD707 anti wear abrasion ceramic beads small particle filled repairing epoxy coating:
Two components,widely used in the repairing of various wear-out part and the preparation of wearing abrasion resistant protective coating
on the surface of various machine part which has wear & corrosion resistant requirements.such as:the repairing and pre-protecting of pipe,
elbow,slurry pump,pumping sand pump, centrifuge, packing boxes, power plant desulfurization system slurry circulating pump body,
impeller,concentric reducer etc.

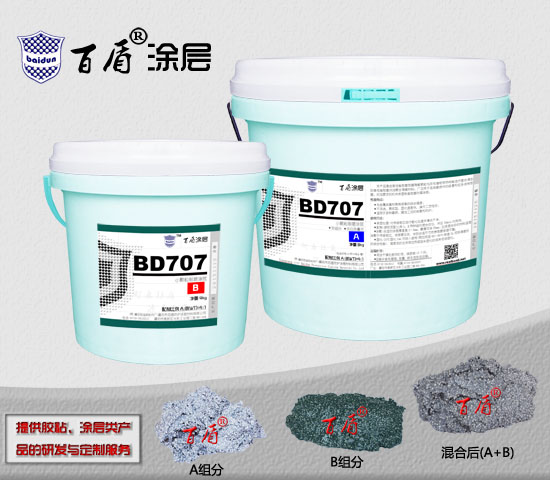

Product packaging actual photo of BD707 small ceramic bead particle filled epoxy compound wear abrasion resistant coatings:
according to the specified ratio,make it be coating on the abrasion parts,and repair it to be the original size,the adhesive layers must be compacted
layer by layer,avoid appearing cavity.It can be put into using after curing for 24 hours at room temperature,or curing for 1 hour at room
temperature,then heat it up to the temperature of 80 degree slowly and keep this temperature for 2 hours,then start it up fast.when the temperature
is low,need to heat it up to the temperature of 80 degree and keep this temperature for 2 hours after the material initial curing.
Range of application for BD707 anti wear abrasion ceramic beads small particle filled repairing epoxy coating:
Two components,widely used in the repairing of various wear-out part and the preparation of wearing abrasion resistant protective coating
on the surface of various machine part which has wear & corrosion resistant requirements.such as:the repairing and pre-protecting of pipe,
elbow,slurry pump,pumping sand pump, centrifuge, packing boxes, power plant desulfurization system slurry circulating pump body,
impeller,concentric reducer etc.
Product packaging actual photo of BD707 small ceramic bead particle filled epoxy compound wear abrasion resistant coatings:
