BD120 wear resistant ceramic metal epoxy compound adhesive

BD120 wear resistant ceramic metal epoxy compound adhesive
BD120 abrasion wear resistant ceramic metal bonding epoxy compound adhesives

product features of our BD120 chemical abrasion resistant ceramic tile metal epoxy bonding adhesive:
1.It’s consist of modified toughening resin and special curing agent
2.The curing speed is moderate at the normal temperature,long-term temperature resistance is 120 degree.The curing speed is fast for heat curing,can also get the higher bonding strength.
3.With the high bonding strength and good toughness,with very high bonding force to metal,ceramic and various other materials.
4.With a good water resistance,oil resistance and aging resistance.

product usage:
With the good bonding strength,good toughness,with the high adhesive strength to steel,cement,ceramic, aluminum alloy,
stainless steel and various other materials,especially suitable for the bonding of wear resistant ceramic chip.
Used in the bonding of wear resistant ceramic chip on the equipment of suffering from the ash powder scour,
materials strong scour or erosive wear.

performance index:

product name physical
state
standard
packaging
operation
time limit
(25¡æ)
usable
time
(25¡æ)
range of application
BD120 wear abrasion
ceramic metal bonding
epoxy adhesives
semi-fluid 5kg 0.5h 6 hours Used in the self-adhesion and each-adhesion between
metal,ceramic and other materials.
Especially used in the paste of wear resistant ceramic tile on the equipment of suffering from the ash powder
blushing,material scour or erosive wear
item color density
(g/cm3)
shear strength
(Mpa)
GB7124-2008
impact strength
(J/cm2)
GB6328-1999
tensile strength
(Mpa)
GB6329-2008
compressive strength
(Mpa)
GB1041-2008
working temperature
£¨¡æ£©
BD120 white 1.21 16 55 79 88 -60-150

How to use:
1.Surface treatment: Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend,
clean it by cleaning agent in the end

2.Configure adhesive: According to the specified requirements,make A and B two components mix uniformly   A:B=4:1

3.Using adhesive: Make configured adhesive spread coating on the surface of adherend uniformly,then fold it,
knock it from the middle to all around with the rubber hammer for once, avoid getting into the air in the middle.

 4.Curing:Initial curing for 4 hours at the room temperature,fully curing for 24 hours£¨15¡«18MPa£©,if you heat it up to the temperature of 80 degree and keep this temperature for 2 hours,then do the last curing,
in this way,can get the higher combination property(can improve 30%)

Packaging specification:
Packed in a plastic drum, A component: 4Kg/drum, 4 drums/carton; B component: 1Kg/drum, 12 drums/carton or
8 drums/carton.

Transportation storage:
Sealed storage in the cool and dry place. The warranty period is 1 year. Avoid placing it upside down, knocking against and
transporting it as a non-dangerous product during transportation.

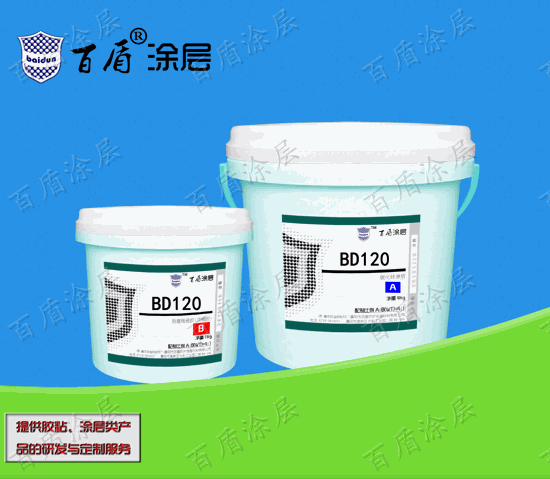

Product packaging photo of BD120 ceramic metal bonding repair anti wear abrasion corrosion resistant epoxy adhesive
