anti wear abrasion resistant ceramic tile bonding adhesive

BD180 anti wear abrasion resistant ceramic tile epoxy compound bonding adhesives

performance features of our BD180 high temperature abrasion wear resistant bonding ceramic adhesive:
1.It’s Two-component adhesive consist of modified toughening heat resistant resin and special curing agent
2.Aging resistant,high temperature resistant,corrosion resistant,good toughness,high bonding strength
3.Can cure at the normal temperature, can also heat up for curing)

product usage:
With the high adhesive strength to steel,cement,ceramic, aluminum alloy, stainless steel and various other materials,
especially suitable for the paste of wear resistant ceramic tile under 200 degree temperature.Used in the paste of wear resistant ceramic chip of medium speed coal mill cone,coarse powder separator,
exhaust fan,coal dust pipeline and the ash powder flushing equipment and steel,cement and other equipment of suffering
from materials strong erosion and erosive wear in chemical or other industries.

performance index:

product name	physical state	standard packaging	operation time limit (25℃)	usable time (25℃)	range of application
BD180	semi-fluid	5kg/group	0.5h	6 hours	With the high adhesive strength to steel, cement,ceramic, aluminum alloy,stainless steel and various other materials,especially suitable for the paste of producing wear resistant parts under 200 degree temperature

item	color	density (g/cm3)	shear strength (Mpa) GB7124-2008	impact strength (J/cm2) GB6328-1999	tensile strength (Mpa) GB6329-2008	compressive strength (Mpa) GB1041-2008	working temperature （℃）
BD180	gray	1.21	19	58	91	91	-60-200

How to use:
1.Surface treatment: Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend,
clean it by cleaning agent in the end.

2.Configure adhesive: According to the specified requirements,make A and B two components mix uniformly A:B=4:1

3.Using adhesive: Make configured adhesive spread coating on the surface of adherend uniformly.Double spread,
the bonding effect will be better.

4.Curing: Initial curing at the room temperature for 1~1.5 hours,fully curing for 24 hours,heat it up to the temperature of 80
degree and keep this temperature for 2 hours,then do the last curing,in this way,it can get the higher strength(≥18MPa)

5.Every time the suitable quantity of configuring adhesive is 300g～500g,too much adhesive is not easy to mix uniformly,every time the usable time of configuring adhesive is about 30～40 min,the usable time is long at the low temperature,the usable time is short at the high temperature,should adjust the configured
adhesive quantity according to the actual condition.

Packaging specification:
Packed in a plastic drum, A component: 4Kg/drum, 4 drums/carton; B component: 1Kg/drum,12 drums/carton
or 8 drums/carton.

Transportation storage:
Sealed storage in the cool and dry place.The warranty period is 12 months.Avoid placing it upside down,
knocking against and transporting it as a non-dangerous product during transportation.

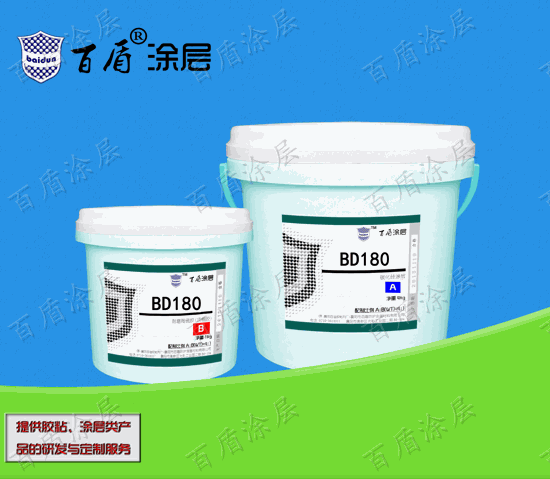

Product packaging photo of BD180 anti abrasion wear high temperature resistant ceramic tile bonding epoxy adhesive:
