wear resistant ceramic adhesiv > anti wearing abrasion resistant compound ceramic adhesive

anti wearing abrasion resistant compound ceramic adhesive

BD181 anti abrasion wearing resistant ceramic tile bonding repair compound epoxy adhesive(ceiling adhesives)

Performance features of our BD181 wear abrasion resistant ceramic tile bonding repair adhesives:
1. It's the two components paste epoxy adhesive consist of modified heat resistant toughening resin and special curing agent
2. Aging resistant,high temperature resistant,corrosion resistant,good toughness,with high bonding strength.
3. Can cure at room temperature,can also heat for curing
4. With strong initial adhesion,it won't fall off without using magnet or other support measures during construction,optimizing
construction technology and reducing construction cost

Product usage of our BD181 high temperature anti wearing abrasion epoxy ceramic adhesive:
With very high bonding force to steel,cement,ceramic,aluminum alloy,stainless steel etc various material,especially suitable for
the bonding of wear abrasion resistant ceramic tile under the temperature of 200 degree.Suitable for sticking the wearing
abrasion resistant ceramic tile based on medium speed coal mill cones,coarse powder separator,exhauster,coal dust pipeline
etc.suffered ash powder scour equipment and the equipment of suffering from material strong scour or erosive wear in
the industries of steel,cement,chemical etc.Mainly used in the bonding of wear resistant ceramic chip on the equipment
ceiling and facade.

Performance index:

product name	physical state	standard packing	Operation time limit (25℃)	Usable time (25℃)	range of application
BD181 wear abrasion resistant ceramic tile bonding adhesive	paste	5kg	0.5h	6h	With very high bonding force to steel,cement,ceramic,aluminum alloy,stainless steel etc various material,especially suitable for the bonding of wear resistant ceramic chip on the equipment ceiling and facade under 200℃ working condition.

Item type	color	Density (g/cm³)	Shear strength (Mpa) GB7124-2008	Impact strength (J/cm²) GB6328-1999	Tensile strength (Mpa) GB6329-2008	Compressive strength (Mpa) GB1041-2008	Working temperature （℃）
BD181	black	1.29	18	60	91	110	-60-200

How to use:
1.Surface treatment:
Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend,finally clean it by cleaning agent.

2.The preparation of anti wear abrasion high temperature resistant ceramic tile adhesive:
According to the specified requirement,make A and B two component mix uniformly. A:B(mass ratio)=4:1

3.Using adhesive:
Make the configured adhesive be coating on the adherend surface uniformly.Double spread will get the better bonding effect.

4.Curing:
Initial curing will take 1~1.5 hours at room temperature,complete curing will take 24 hours at room temperature,heat it up to the
temperature of 80 degree and keep this temperature for 2 hours,then do the post curing,it can get the higher strength(≥18MPa)

5.The preparation quantity of BD181 anti wear abrasion ceramic tile bonding repair adhesives:
It’s suitable to configure 300～500g adhesive every time,too much adhesive is not easy to mix uniformly,every time the usable
time of configuring adhesive is about 30～40min,the usable time is long for the low temperature,the usable time is short for the
high temperature.Can adjust the configuration adhesive quantity according to the actual condition.

Packing specification:
Packed in a plastic drum,A component: 4Kg/drum,4 drums/carton, B component: 1Kg/drum,12 drums/carton or 8 drums/carton.
We could offer you professional customized packaging and sub-package services based on users' requirements.

Transportation storage:
Sealed storage in the cool and dry place.The warranty period is 12 months.Avoid placing it upside down,knocking against and
transporting it as a non-dangerous product during transportation.

Special version:
1.This parameter is for laboratory conditions,due to the actual working condition is more complex,suggest the users to do the
pretest according to actual working condition.

2.When the environment temperature is below 15 degree,the curing time will prolong,should take proper heating measure.

3.When the environment temperature is more than 25 degree or the mixing quantity is too large,the curing speed will expedite,
should properly shorten the application time of coating after mixing.

Construction protective measures:
1.Wear the protective masks,wear the protective glasses and rubber gloves
2.Need washing hands with soap before eating,drinking or smoking.
3.The health hazard after touching: a few people will have skin allergy phenomenon,see a doctor in time and avoid touching with
this product again.should wipe it with ethyl acetate when the sizing material paste on the skin by careless,then wash it with clear water.
Should wash it with clear water immediately and see a doctor when splashing into the eyes by careless.

Warm Prompt:
Residual adhesive solution cured products are non-toxic harmless organic solid,but maybe it will produce poisonous gas when
burning,non-professional personnel can not do combustion disposal,should be sent to garbage power plant or garbage burning
place treatment.

Fire prevention measures:
Should choose dry powder to extinguish fire,can cover and flap it with dry powder,grit(the construction using abrasive) or
the non chemical fiber fabric when the sizing material catching fire.

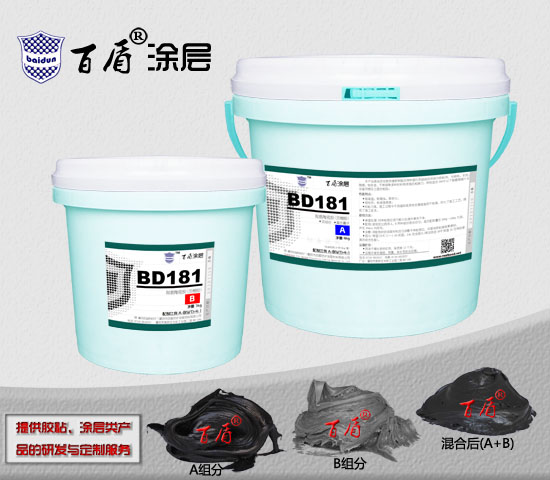

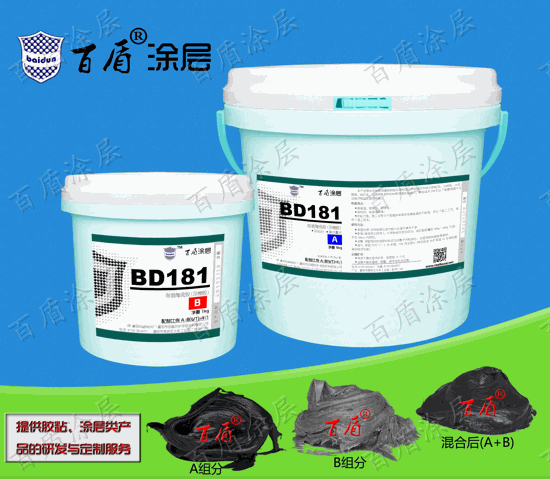

Product packaging actual photo of our BD181 abrasion wear resistant ceramic tile bonding epoxy adhesive:
