wear resistant ceramic adhesiv > anti wearing ceramic tile epoxy compound repair adhesive

anti wearing ceramic tile epoxy compound repair adhesive

BD151 anti chemical abrasion wear resistant ceramic tile bonding repair compound epoxy adhesives

Performance features of BD151 ceramic tile wearing abrasion resistant bonding repair adhesive:
1. It’s the two component adhesive consist of modified toughening resin and special curing agent
2. Aging resistant,with good water resistance, good toughness and high strength
3. Can cure at the room temperature, can also heat up for curing

product usage of BD151 anti abrasion wear resistant ceramic tile bonding repair compound adhesives:
Used in the paste of wear resistant ceramic ship on the equipment top surface and facade.With strong initial adhesion.
It won’t fall off without using magnet or other supporting measures during construction.Optimize the construction process
and reduce the construction cost.

Performance index:

product name	physical state	standard packing	operation time limit (25℃)	usable time (25℃)	range of application
BD151 ceramic tile anti wear abrasion bonding epoxy adhesive	paste	Two-component 5kg/set	0.5h	6h	Used in the self-adhesion and each-adhesion between metal and ceramic etc materials,especially used in the bonding of wear resistant ceramic chip on the ceiling and facade of the equipment which suffers the ash powder scour and material scour or erosive wear.

Item type	color	density (g/cm³)	shear strength (Mpa) GB7124-2008	impact strength (J/cm²) GB6328-1999	tensile strength (Mpa) GB6329-2008	compressive strength) (Mpa) GB1041-2008	working temperature （℃）
BD151	white	1.24	19	68	89	92	-60-150

How to use:
1.Surface treatment:
Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend,finally clean it by cleaning agent.

2. The preparation of anti wearing abrasion ceramic tile repair bonding epoxy adhesive
According to the specified requirements,make A and B two components mix uniformly, the mass ratio is A:B=4:1

3.Using adhesive:
Make configured adhesive spread coating on the surface of adherend uniformly,then fold it,knock it from the middle to all around
with the rubber hammer for once, avoid the air getting into it

4.Curing:
Initial curing will take 4 hours at the room temperature,fully curing will take 24 hours (12～15MPa),heat it up to the temperature of 80
degree and keep this temperature for 2 hours,then do the last curing,in this way,it can get the higher combination property
(can improve 30% of comprehensive performance)

Packaging specification:
1.Our common packaging: Packed in a plastic drum,two components,A component: 4Kg/drum, 4 drums/carton;
B component: 1Kg/drum, 12 drums/carton or 8 drums/carton.
2.We could offer you professional customized packaging and sub-package based on users' requirments

Transportation storage:
Sealed storage in the cool and dry place.The warranty period is 1 year.Avoid placing it upside down, knocking against and transporting
it as a non-dangerous product during transportation.

Special version:
1.This parameter is for laboratory conditions,due to the actual working condition is more complex,suggest the users to do the pretest
according to actual working condition.

2.When the environment temperature is below 15 degree,the curing time will prolong,should take proper heating measure.

3.When the environment temperature is more than 25 degree or the mixing quantity is too large,the curing speed will expedite,
should properly shorten the application time of coating after mixing.

Construction protective measures:
1.Wear the protective masks,wear the protective glasses and rubber gloves
2.Need washing hands with soap before eating,drinking or smoking.
3.The health hazard after touching: a few people will have skin allergy phenomenon,see a doctor in time and avoid touching with
this product again.should wipe it with ethyl acetate when the sizing material paste on the skin by careless,then wash it with clear water.
Should wash it with clear water immediately and see a doctor when splashing into the eyes by careless.

Warm Prompt:
Residual adhesive solution cured products are non-toxic harmless organic solid,but maybe it will produce poisonous gas when
burning,non-professional personnel can not do combustion disposal,should be sent to garbage power plant or garbage burning
place treatment.

Fire prevention measures:
Should choose dry powder to extinguish fire,can cover and flap it with dry powder,grit(the construction using abrasive) or
the non chemical fiber fabric when the sizing material catching fire.

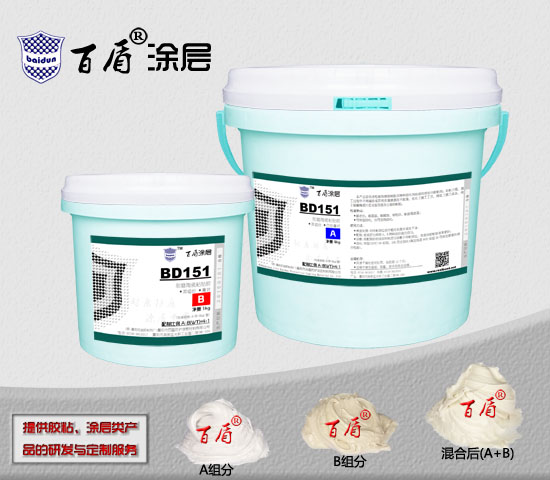

Product packaging actual photo of BD151 ceramic tile anti abrasion wear bonding two components adhesives:

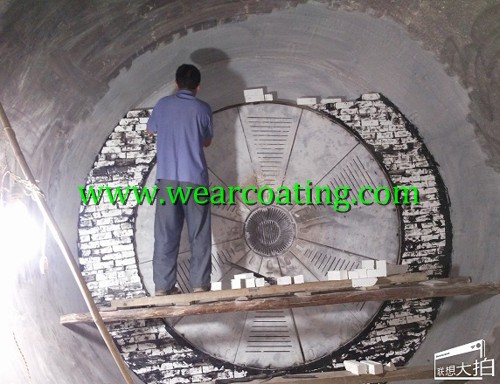

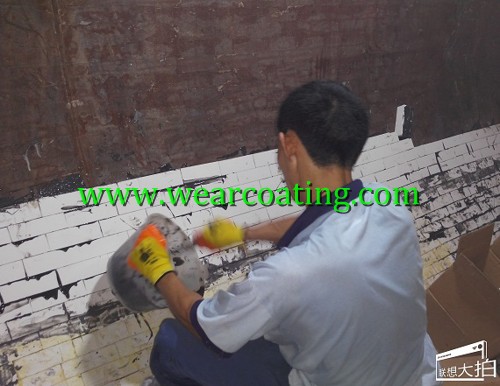

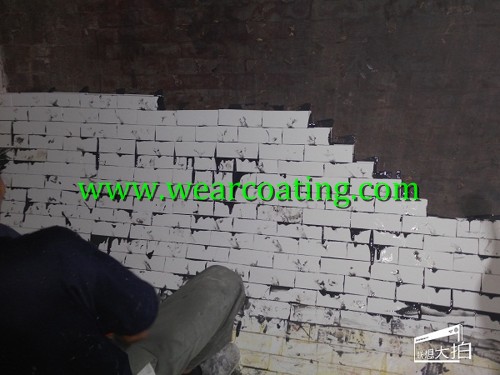

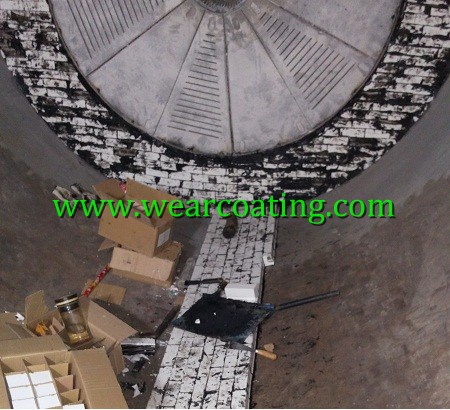

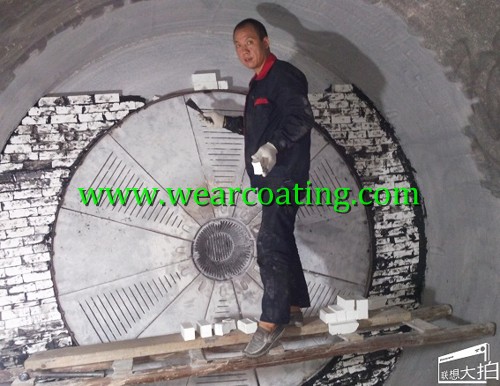

Product application case photos of BD151 anti wearing abrasion ceramic tile high strength bonding adhesive:
