wear resistant ceramic adhesiv > blower wheel anti wear abrasion resistant ceramic adhesive

blower wheel anti wear abrasion resistant ceramic adhesive

blower wheel anti wear abrasion resistant ceramic adhesive
BD150 blower wheel repair special anti wear abrasion resistant ceramic tile epoxy compound adhesive

performance features of our BD150 fan propeller repair anti abrasion wear ceramic epoxy adhesives:
1.It’s Two-component adhesive consist of modified toughening resin and composite curing agent
2.Aging resistant,good toughness,high bonding strength
3.Can cure at the normal temperature, can also heat up for curing

product usage of our BD150 fan impeller special abrasion wear resistant ceramic tile adhesive:
Used in the self-adhesion and each-adhesion between metal,ceramic and other materials.Especially used in the paste of
blower wheel/fan impeller wear resistant ceramic tile

performance index:

product name physical
state
standard
packaging

operation
time limit
(25¡æ)
usable
time
(25¡æ)
range of application
BD150 fan impeller
wear abrasion resistant
ceramic adhesives
flow paste 5kg/group 0.5h 12 hours Used in the self-adhesion and each-adhesion
between metal,ceramic and other materials.
Especially used in the paste of
blower wheel wear resistant ceramic tile
item color density
(g/cm3)
shear strength
(Mpa)
GB7124-2008
impact strength
(J/cm2)
GB6328-1999
tensile strength
(Mpa)
GB6329-2008
compressive strength)
(Mpa)
GB1041-2008
working temperature
£¨¡æ£©
BD150 white 1.25 17 60 95 88 -60-150

How to use:
1.Surface treatment: Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of blower wheel,
clean it by cleaning agent and dry it by airing in the end.

2.Configure adhesive: According to the specified requirements,make A and B two components mix uniformly A:B=4:1

3.Using adhesive: Make configured adhesive spread coating on the surface of the end of blower wheel uniformly,
then spreading the adhesive on the inner wall of the “U” shape ceramic tile,make it stuck at the end of blower wheel,
then paste the ceramic chip at the root of blower wheel along the direction of “U” shape ceramic clip.

4.Curing: Initial curing at the room temperature for 4 hours,fully curing for 24 hours £¨14¡«16MPa),heat it up to the temperature of 80 degree and keep this temperature for 2 hours,then do the last curing,
in this way,it can get the higher combination property.(can improve 30%)

4.Every time the suitable quantity of configuring adhesive is 300g¡«500g,too much adhesive is not easy to mix uniformly,every time the usable time of configuring adhesive is about 30¡«40 min,the usable time is long at the low temperature,the usable time is short at the high temperature,should adjust the
configured adhesive quantity according to the actual condition.

Packaging specification:
Packed in a plastic drum, A component: 4Kg/drum, 4 drums/carton; B component: 1Kg/drum, 12 drums/carton
or 8 drums/carton.

Transportation storage:
Sealed storage in the cool and dry place. The warranty period is 12 months.Avoid placing it upside down,
knocking against and transporting it as a non-dangerous product during transportation.

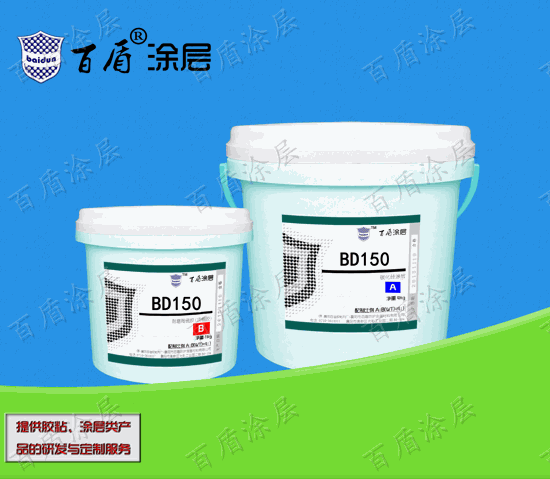

Product packaging photo of BD150 blower wheel repair use wear abrasion chemical resistant epoxy ceramic adhesive
