wear resistant ceramic adhesiv > ceramic installing trowelable epoxy compound bonding agent

ceramic installing trowelable epoxy compound bonding agent

BD131 installing ceramic tile use trowelable two parts epoxy compound bonding agents

Performance feature of BD131 cyclone repair special ceramic installation bonding trowel grade epoxy compound:
1.It’s the white Two-component adhesive consist of modified toughening resin and composite curing agent)
2.Water resistant,aging resistant, good toughness
3. Can cure at the normal temperature, can also heat up for curing
4. Used in the paste of cyclones wear resistant ceramic lining plate

product usage:
High bonding strength,good toughness,water resistance excellent,with the high bonding strength for the metal-ceramic bonding,it’s exclusively
used in the paste of cyclones wear resistant ceramic lining plate.

performance index:

product name	physical state	standard packaging	operation time limit) (25℃)	usable time (25℃)	range of application
BD131 cyclones repair wear resistant epoxy adhesive	semi-fluid	5kg/pastic drum	30min	6 hours	Used in the self-adhesion and each-adhesion between metal,ceramic and various other materials.it’s exclusively used in the paste of cyclones wear resistant ceramic lining plate.

item	color	density (g/cm³)	shear strength (Mpa) GB7124-2008	impact strength (J/cm²) GB6328-1999	tensile strength (Mpa) GB6329-2008	compressive strength (Mpa) GB1041-2008	working temperature （℃）
BD131	white	1.25	15	51	79	90	-60-150

How to use of BD131 two parts epoxy bonding agent for ceramic trowelable installation:
1.Surface treatment: Grinding or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend, clean it by cleaning agent
in the end.

2.Configure adhesive: According to the specified requirements,make A and B two components mix uniformly, the mass ratio is A:B=4:1

3.Using adhesive: Make configured adhesive spread coating on the surface of adherend uniformly.

4.Curing: Initial curing at the room temperature for 4 hours,fully curing for 24 hours（12MPa), heat it up to the temperature of 80 degree
and keep this temperature for 2 hours,then do the last curing,in this way,it can get the higher combination property (can improve 30%).
The configured adhesive should be used up before initial curing

Packaging specification:
Packed in a plastic drum, A component: 4Kg/drum, 4 drums/carton; B component: 1Kg/drum, 12 drums/carton or 8 drums/carton.

Transportation storage:
Sealed storage in the cool and dry place. The warranty period is 12 mouths. Avoid placing it upside down, knocking against and transporting
it as a non-dangerous product during transportation.

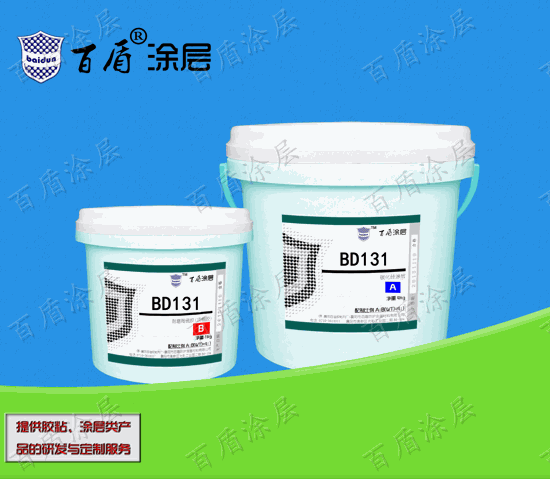

Packaging photo of BD131 ceramic installing trowel grade two parts epoxy compound bonding agents
