high temperature ceramic tile adhesives

high temperature ceramic tile adhesives
High temperature wear resistant ceramic tile adhesives,ceramic installation high temperature resistant bonding agent:

Performance features of our BD181 high temperature ceramic tile adhesive:
1.  It is the two components adhesive consist of modified heat resistant toughening resin and special curing agent
2. Aging resistant,high temperature resistant,corrosion resistant,good toughness,with high bonding strength.
3. Can be curing at room temperature,can also heat up for curing.
4. With strong initial adhesion,it won't fall off without using magnet or other support measures during construction,optimizing construction
technology and reducing construction cost.

Product usage:
With very high bonding strength to steel,cement,ceramic,aluminum alloy,stainless steel etc various materials,especially suitable for the
bonding of wear resistant ceramic tile under the temperature of 200 degree.Suitable for bonding the abrasion resistant ceramic tile based
on medium speed coal mill cones,coarse powder separator,exhauster,coal dust pipeline etc.suffered ash powder scour equipment and the
equipment of suffering from material strong scour or erosive wear in the industries of steel,cement,chemical etc.Mainly used in the bonding
of anti abrasion wear resistant ceramic tile on the equipment ceiling and facade.

Performance index:

product name physical state standard packing Operation time limit
(25¡æ)
Usable time
(25¡æ)
range of application
 high temperature tile adhesives  paste 5kg/palstic drum 30 min 6h With very high bonding force to steel,cement,ceramic,aluminum alloy,stainless steel etc various material,especially suitable for the bonding of wear resistant ceramic chip on the equipment ceiling and facade under 200¡æ working condition.
item models color Density
(g/cm3)
Shear strength
(Mpa)
GB7124-2008
Impact strength
(J/cm2)
GB6328-1999
Tensile strength
(Mpa)
GB6329-2008
Compressive strength
(Mpa)
GB1041-2008
Working temperature
£¨¡æ£©
BD181 black 1.29 18 60 91 110 -60-200

How to use:
  1.Surface treatment: Polishing or sand blasting to clean up the dust,greasy dirt and rust on the surface of adherend,finally clean it by
cleaning agent.

  2.The preparation of ceramic tile installing adhesive: According to the specified requirement,make A and B two component mix uniformly,
mixing weight ratioA: B=4:1

  3.Using adhesive:Make the configured adhesive be coating on the adherend surface uniformly.Double spread will get better bonding effect.

 4.Curing:It can be initial curing after 1~1.5 hours at room temperature,and can be full curing after 24 hours,heat it up to the temperature of 80 degree and keep this temperature for 2 hours,then do the post curing,it can get the higher bonding strength(≥18MPa)

  5.It is suitable to configure 300-500g adhesive every time,too much adhesive is not easy to mix uniformly,every time the usable time of
configuring adhesive is about 30-40 minutes,the usable time is long for the low temperature,the usable time is short for the high temperature.
Can adjust the preparation adhesive quantity according to the actual condition.

Packaging specifications:

Packed in a plastic drum, two components,A component: 4 Kg/drum,4 drums/carton, B component: 1 Kg/drum,12 drums/carton or 8
drums/carton.

Transportation storage:
Sealed storage in the cool and dry place.The warranty period is 1 year.Avoid placing it upside down,knocking against and transporting it as
a non-dangerous product during transportation.

Special version:
1.This parameter is for laboratory conditions,due to the actual working condition is more complex,suggest the users to do the pretest
according to actual working condition.

2.When the environment temperature is below 15¡æ,the curing time will prolong,should take proper heating measure.

3.When the environment temperature is more than 25¡æ or the mixing quantity is too large,the curing speed will expedite,should properly
shorten the application time of coating after mixing.

Construction protective measures:
1.Wear the protective masks,wear the protective glasses and rubber gloves
2.Need washing hands with soap before eating,drinking or smoking.
3.The health hazard after touching: a few people will have skin allergy phenomenon,see a doctor in time and avoid touching with this product again.should wipe it with ethyl acetate when the sizing material paste on the skin by careless,then wash it with clear water.Should wash it with
clear water immediately and see a doctor when splashing into the eyes by careless.

Warm Prompt:
Residual adhesive solution cured products are non-toxic harmless organic solid,but maybe it will produce poisonous gas when burning,non-professional personnel can not do combustion disposal,should be sent to garbage power plant or garbage burning place treatment.

Fire prevention measures:
Should choose dry powder to extinguish fire,can cover and flap it with dry powder,grit(the construction using abrasive) or the non chemical
fiber fabric when the sizing material catching fire.

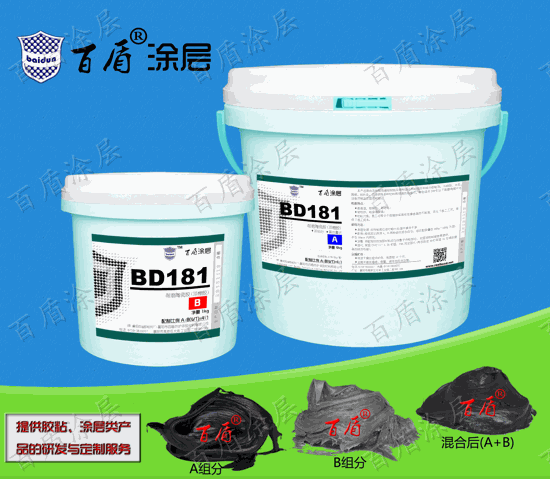

Product packaging photo of our BD181 high temperature ceramic tile adhesive,ceramic tile installation bonding agent:
