solar energy cell battery backing plate adhesives

solar energy cells battery backing plate adhesive:

Product usage:
Used for the screen printing of photovoltaic cells,it can form compacted protective coating after curing,Replace traditional lamination process,
improve production efficiency and reduce production cost.

Performance features:
1. This product is one component heat curing protective coating.
2. The surface of cured products is smooth and compacted after printing
3. It has a wide range of adhesion,and with good adhesion to glass,ink and metal etc.
4. Heat resistant,cold resistant,acid resistant,water resistant and aging resistant.
5. With good manufacturability,and easy to use.

How to use:
1. Choose and use the 100 mesh to 160 mesh screen cloth automatic press or manual printing press.
2. Take proper amount of this product on the silk screen, can be printed continuously, add the adhesive material in time.
3. After printing,place it in the drying oven or drying tunnel of 135 +/- 5 deg C temperature,cure it for more than 15 minutes.

Performance index of BD567 solar energy battery backing plate adhesive:

Appearance	Viscosity (Pa.s 25 deg C),GB/T2794-1995	Ti Value GB/7123-1986	High-low temperature impact(100 deg C poach,-40 deg C per 5 times,GB/T-2786	ultraviolet light resistance GB/10807-1989
Black liquid,without impurities	3.8±0.5	1.1~1.5	The appearance is unchanged, not debond	Not cracking,non yellowing

Matters need attention:
1. This product should be 15 deg C low temperature storage.
2. This product can be diluted with ethyl acetate or toluene.
3. Cover the barrel cover tightly in time,in order to preventing moisture and impurities from polluting this adhesive.

Product packaging specifications:
This product is packed in 20 litre iron durm,can also be packed based on users’ requirements.

Storage:
This product is the general chemical goods,in the transportation and storage process, it should be protected by waterproof, flame - proof
and low temperature drying.

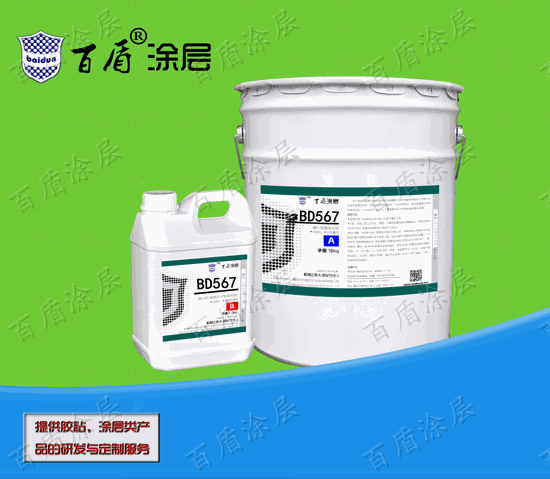

Product packaging photo of BD567 solar energy cells backing plate adhesives:
