BD406 wear corrosion resistant ceramic particle coatings

BD406 wear abrasion corrosion resistant ceramic particle epoxy coating

Product description of our BD406 anti wear corrosion resistant epoxy compound ceramic coatings:
It’s the high performance wear&corrosion resistant polymerization ceramic materials compounded by various
high performance wear resistant,corrosion resistant material(such as:ceramic,silicon carbide,carborundum, titanium alloy)
and modified toughening heat resistant resin.Repair various pumps,valves, pipeline, heat ex-changer end plate, blade of suffering from normal temperature corrosion,also can do large areas pre-protecting.

Performance index:

product name	physical state	standard packaging	volume (cm3)	operational time limit (25℃)	usable time (25℃)
406 abrasion corrosion resistant ceramic particle epoxy coating	semi-fluid	500g/group Two-component	364	45min	24h

color	density (g/cm3)	compressive strength (Mpa) GB1041-2008	shear strength (Mpa) GB7124-2008	bending strength (Mpa) GB1042-1999	hardness （Shore D） ASTM-D-2556	working temperature （℃）
gray	1.38	100	25	562	86	-60～150

How to use:
1.Surface treatment: Do the rust-cleaning and coarsening treatment on the pending-repair area,then clean it by cleaning agent

2.Preparation: According to the mass ratio A:B=5:1 or volume ratio A:B=4:1, make A and B two components mix uniformly,
then use it up within specified operation time limit.

3.Coating: Make the mixed-up material spread coating on the pending-repair areas layer by layer,the first layer should be compacted,make it infiltrate fully with the substrates.

4.Curing: Cure for 24 hours at the temperature of 25～30 degree before putting it into use, if the temperature is low,should heat it up or prolong the curing time to promote the curing.

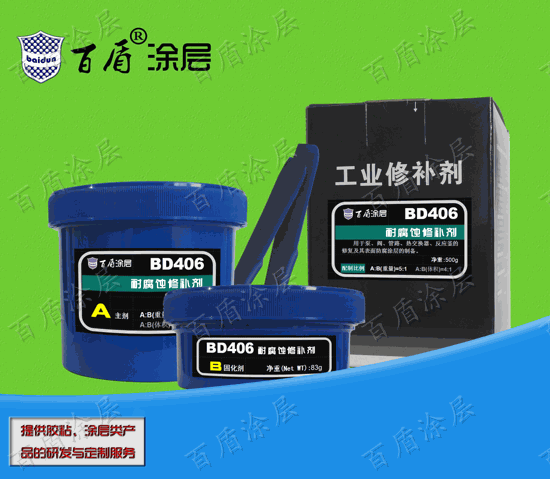

Product packaging photo of BD406 anti chemical wear corrosion resistant epoxy ceramic coatings
