wear resistant coatings > BD707 wear resistant coating fine ceramic particle adhesive

BD707 wear resistant coating fine ceramic particle adhesive

BD707 wear resistant coating fine ceramic particle adhesive
BD707 small ceramic beads particle anti wearing abrasion resistant coatings:

Packing specification:
Two component,10Kg/group,packed in a plastic drum

performance feature£º
dark gray paste,small particle,room temperature curing
BD707 wear resistant coatings(particle adhesive) and metal substrate has a high bonding strength
Don't flow,with good formability,fast curing speed and good operation manufacturability
Suitable for the repairing and protecting of various wear,corrosion working condition

product usage:
BD707 wear resistant coatings(particle adhesive)  is the high performance wear & corrosion resistant polymerization ceramic material compounded by high performance wear resistant ceramic particles and modified toughening heat resistant resin.Widely used in the repairing of various wear-out parts and the preparation of wear & corrosion resistant coating on the surface of various machine part which has wear resistant,corrosion resistant requirements.

How to use:
1.Surface treatment:Do coarsening treatment on the pending-repair part,grinding with angle grinder or sand blasting etc,the surface after coarsening treatment should be cleaned,the surface after this treatment should be the one coarsening,dry and fresh substrates,should be no greasy dirt and dust.

 2.Preparation:According to weight ratio or volume ratio 4:1,make A and B two components mix uniformly,and use it up within 30 min.Generally it’s while construction and configuration.Every time the most configuration quantity is not more than 1.5Kg,too much adhesive is solidified too fast,hasn’t been used up until the adhesive has partial solidified and can’t be used.According to the actual temperature,configuration can be properly a little more in winter and proper less in summer.If the temperature is too low,can properly heat up the A component to reduce viscosity for easy to configure.

 3.Coating: the suitable coating thickness of  BD707 wear resistant coatings(particle adhesive)  is 2-8mm,the most thickness can be 30mm,make the mixed-up material be coating on the pending-repair part layer by layer,the first layer should be compacted,make it fully infiltrates with the substrates,repair the surface to be smooth after the coating is coated on the suitable size,if it has high surface requirements,can make the BD426 corrosion resistant coating adhesive be coating on the surface as the topcoat,this material can’t do machining,should pay attention to controlling the coating thickness to avoid appearing interference phenomenon in the assembly.

 4.Curing:Cure for 24 hours at the temperature of 25¡æ before using,(If can heat up to the temperature of 60—80¡æ and keep this temperature for 2 hours,in this way,can improve 30% comprehensive performance) If the temperature is low,should heat it up or prolong curing time to promote the curing.General construction in winter,can use iodine tungsten lamp do irradiation heating with 40cm distance from the coating.

performance index:
BD707 wear resistant coatings(particle adhesive)   physical and mechanical properties table
color bending strength(Mpa)
GB1042-1999
tensile strength(Mpa)
GB6329-2009
compressive strength(Mpa)
GB/7124-2008
shear strength(Mpa)
GB/1041-2008
hardness after curing(Shore D)
ASTM-D-2556
dark gray 52 38 101 >16 89

BD707 curing features table(test condition:temperature:20¡«25¡æ,relative humidity:55)
physical state operation time limit(25¡æ) curing time(25¡æ) working temperature of ensuring wear resistance(¡æ) density(g/cm3)
paste 30min 24h -60¡«110 2.4


Special version:
  1.   This parameter is for laboratory conditions,due to the actual working condition is more complex,suggest users do pretest according to actual working condition
  2.   When the environment temperature is below  15¡æ,the curing time will prolong,should take proper heating measure
  3.   When the environment temperature is more than 25¡æ or the mixing quantity is too large,the curing speed will expedite,should properly shorten the application time of coating after mixing.


Transportation storage:
 Sealed storage in the cool and dry place.The warranty period is 1 year.Avoid placing it upside down,knocking against and transporting it as a non-dangerous product during transportation.

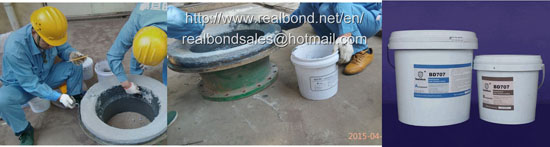

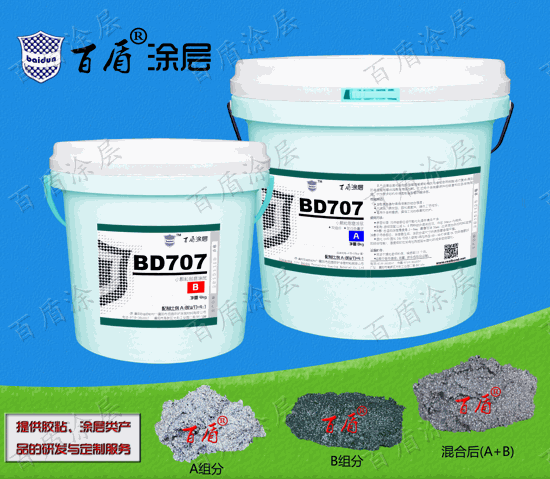

Product packaging actual photo of BD707 ceramic bead fine particles anti abrasion wear resistant repair epoxy coating:
