BD746 high temperature abrasion resistant ceramic coating

BD746 high temperature abrasion resistant ceramic coating

BD746 high temperature anti wearing abrasion resistant epoxy ceramic coatings (big particle)

Product description:
BD746 high temperature wear resistant coating is the high performance,high temperature resistant,
abrasion & corrosion resistant polymeric ceramic material which compounded by high performance wear resistant,
corrosion resistant material(like ceramic,silicon carbide,carborundum,titanium alloy etc)and modified toughening heat
resistant resin.Widely used in the preparation of wear & corrosion resistant coatings on the surface of various machine
parts which have high temperature,abrasion resistant and corrosion resistant requirements.The highest temperature resistant
is 250 degree,the suggestion using temperature is 210 degree.

Product features:
1.With excellent wear resistant and corrosion resistant performance
2.With very high bonding strength to the metal substrates
3.Convenient for construction.Don't drip and slide
4.Suitable for the protection of high temperature corrosion and abrasion working condition.
5.Don’t precipitate and layering.
6.Hot water resistant,steam resistant,acid & alkali resistant.

Performance Index:

Product item Physical states Operation
time limit(25¡æ)
Usable time Range of application
BD746  high temperature
wear resistant epoxy ceramic coating
paste 40 min 24 hours Used on the surface of various machine
part which has high temperature wear
resistant,corrosion resistant requirements,
such as the preparation of anti wear corrosion
 resistant coatings in power plant,steel plant
and gas flue etc.
Color Density
(g/cm3)
Compressive strength
(Mpa)
GB1041-2008
Tensile strength
(Mpa)
GB6329-2009
Shear strength
(Mpa)
GB7124-2008
Bending strength
(Mpa)
GB1042-1999
Working
temperature£¨¡æ£©
Grey 2.4 99 35 12 51 -60-210

How to use:
1.Surface treatment:Do the roughing treatment on the pending-repair part,grinding with angle grinder or sand blasting etc.The surface after roughing treatment should be cleaned,
the surface after this treatment should be the one roughen,dry and fresh substrates,should be no greasy dirt and dust.

2.Preparation:Make A and B two-component mix uniformly according to the weight ratio A:B=4:1,and use it up within 40 minutes,
generally it’s while construction and configuring adhesives,every time the largest quantity of configuring adhesive is not more than
2 kilograms,too much adhesive is solidified too fast,hasn’t been used up until the partial adhesive has solidified and can’t be used.
According to the actual temperature,the configuration can be proper some more in winter,and proper some less in summer.
If the temperature is too low,can properly heat up the A component to reduce the viscosity for easy to configure.

3.Coating: The suitable coating thickness of BD746 high temperature abrasion resistant coating is 4-15mm,
should make the mixed-up materials be coating on the pending-repair parts layer by layer,the first layer should be compacted,make it infiltrate fully with the substrates.
Should repair the surface to be smooth after the coating is coated in the suitable size,or make the low viscosity
wear resistant adhesive be coating on the surface of the coatings.This material can’t do machining,should pay attention
to controlling the coating thickness,in order to avoid appearing the interference phenomenon during the assembly.

4.Curing: It can be put into using based on curing for 24 hours at the temperature of 25 degree,if the temperature is low,
should heat it up or prolong the curing time to promote curing.Generally construction in winter,can use the iodine-tungsten lamp to do the irradiation heating with the 40cm distance from the coatings.

Packaging Details:
Packed in a plastic drum, two-component,10Kg/group,A component: 8Kg/drum, B component: 2Kg/drum

Storage and Warranty:
1.Sealed storage in the cool and dry place.The warranty period is 12 months.
2.Avoid placing it upside down,knocking against and transporting it as a non-dangerous product during transportation.

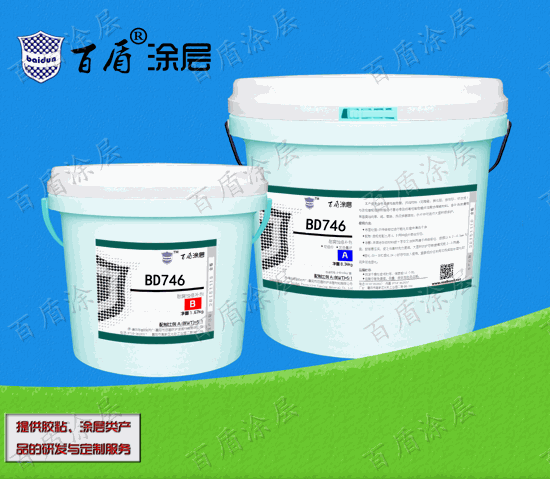

Product packaging photo of BD746 high temperature anti abrasion wear resistant epoxy compound ceramic coatings:
