magnetic separator wearing repair compound epoxy coating

BD7051 magnetic separator repair anti corrosion abrasion wearing resistant compound epoxy coating

Product description:
BD7051 magnetic separator repair epoxy compound anti corrosion abrasion wearing resistant coating is the high performance
wearing abrasion resistant polymeric material compounded by high performance abrasion wearing resistant particle
(silicon carbide,carborundum etc) and modified toughening heat resistant resin.It’s exclusively used in the preparation of
wear abrasion resistant protective coating on the surface of magnetic separator cylinder.

Product features of our BD7051 anti corrosion wearing resistant magnetic separator repair epoxy coating:
1.With excellent wear & water resistance.
2.With very high bonding strength to metal substrates.
3. The facade doesn’t flow, construction is convenient,without high technical requirements for the constructors.
4. It’s exclusively used in the preparation of wear resistant protective coating on the surface of magnetic separator cylinder.

Performance index

product name	Physics Status	operation time limit (25℃)	curing time (25℃)	range of application
BD7051 magnetic separator repair wearing resistant compound epoxy coating	paste	25min	24 hours	Used in the preparation of wear resistant protective coating on the surface of magnetic separator cylinder.

color	density (g/cm³)	compressive strength (Mpa) GB1041-2008	tensile strength (Mpa) GB6329-2008	shear strength (Mpa) GB7124-2008	bending strength (Mpa) GB1042-1999	hardness after curing （Shore D） ASTM-D-2556	working temperature （℃）
green(black,blue,red)	2.05	99	37	14	51	89	-60～150

Special version:
1.This parameter is for laboratory conditions,due to the actual working condition is more complex,suggest the users to do the
pretest according to actual working condition.

2.When the environment temperature is below 15 degree,the curing time will prolong,should take proper heating measure

3.When the environment temperature is more than 25 degree or the mixing quantity is too large,the curing speed will expedite,
should properly shorten the application time of coating after mixing.

How to use of BD7051 magnetic separator anti abrasion wearing resistant repair coating epoxy compound:
1.Surface treatment:
Do coarsening treatment on the pending-repair part,grinding with angle grinder or sand blasting etc,the surface after coarsening
treatment should be cleaned,the surface after this treatment should be the one coarsening,dry and fresh substrates,should be no
greasy dirt and dust.

2.Preparation of BD7051magnetic separator repairing wearing resistant compound epoxy coating:
According to weight ratio 4:1, make A and B two component mix uniformly,and use it up within 30 min.
Generally it’s while construction and configuration.According to the actual temperature,configuration can be properly a little
more in winter,proper less in summer.If the temperature is too low,can properly heat up the A component to reduce viscosity for
easy to configure.

3.Coating:
The suitable coating thickness of BD7051 magnetic separator reparing anti corrosion wearing abrasion resistant coating
is 3~5mm.Make the mixed-up material be coating on the pending-repair part layer by layer, the first layer should be compacted,
make it infiltrate fully with the substrates.Repair the surface to be smooth after the coating is coated in the suitable size.
This material can’t do machining,should pay attention to controlling the coating thickness to avoid appearing interference
phenomenon in the assembly.

4.Curing:
It can be put into using after curing for 24 hours at the temperature of 25 degree,when the temperature is below 15 degree,
should heat it up to promote the curing. General construction in winter,can use iodine tungsten lamp do irradiation heating
with 40cm distance from the coating.

Construction protective measures：
1.Wear the protective masks,wear the protective glasses and rubber gloves
2.Need washing hands with soap before eating,drinking or smoking.
3.The health hazard after touching: a few people will have skin allergy phenomenon,see a doctor in time and avoid touching
with this product again.should wipe it with ethyl acetate when the sizing material paste on the skin by careless,then wash it
with clear water.Should wash it with clear water immediately and see a doctor when splashing into the eyes by careless.

Warm Prompt：
Residual adhesive solution cured products are non-toxic harmless organic solid,but maybe it will produce poisonous gas
when burning,non-professional personnel can not do combustion disposal,should be sent to garbage power plant or garbage
burning place treatment.

fire prevention measures：
Should choose dry powder to extinguish fire,can cover and flap it with dry powder,grit(the construction using abrasive) or
the non chemical fiber fabric when the sizing material catching fire.

Packaging specification:
1.Our common packaging:double components,20Kg/group,packed in a plastic drum,A components: 16Kg/drum,
B component: 4Kg/drum.
2.We could offer you professional customized packaging based on users' requirements.

Transportation storage:
Sealed storage in the cool and dry place.The warranty period is 12 months.Avoid placing it upside down,knocking against
and transporting it as a non-dangerous product during transportation.

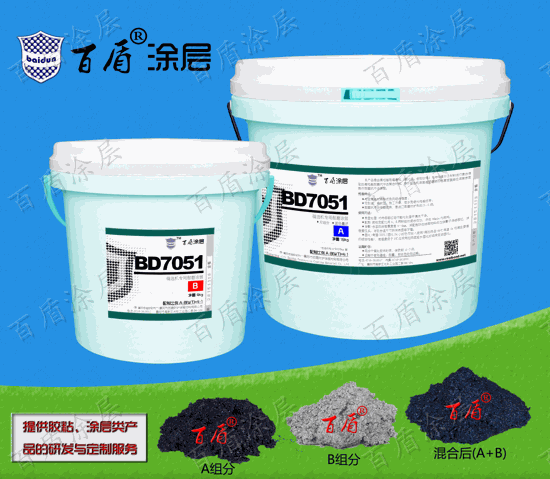

Product packaging actual photo of BD7051 magnetic separator repair anti corrosion abrasion resistant coating:
